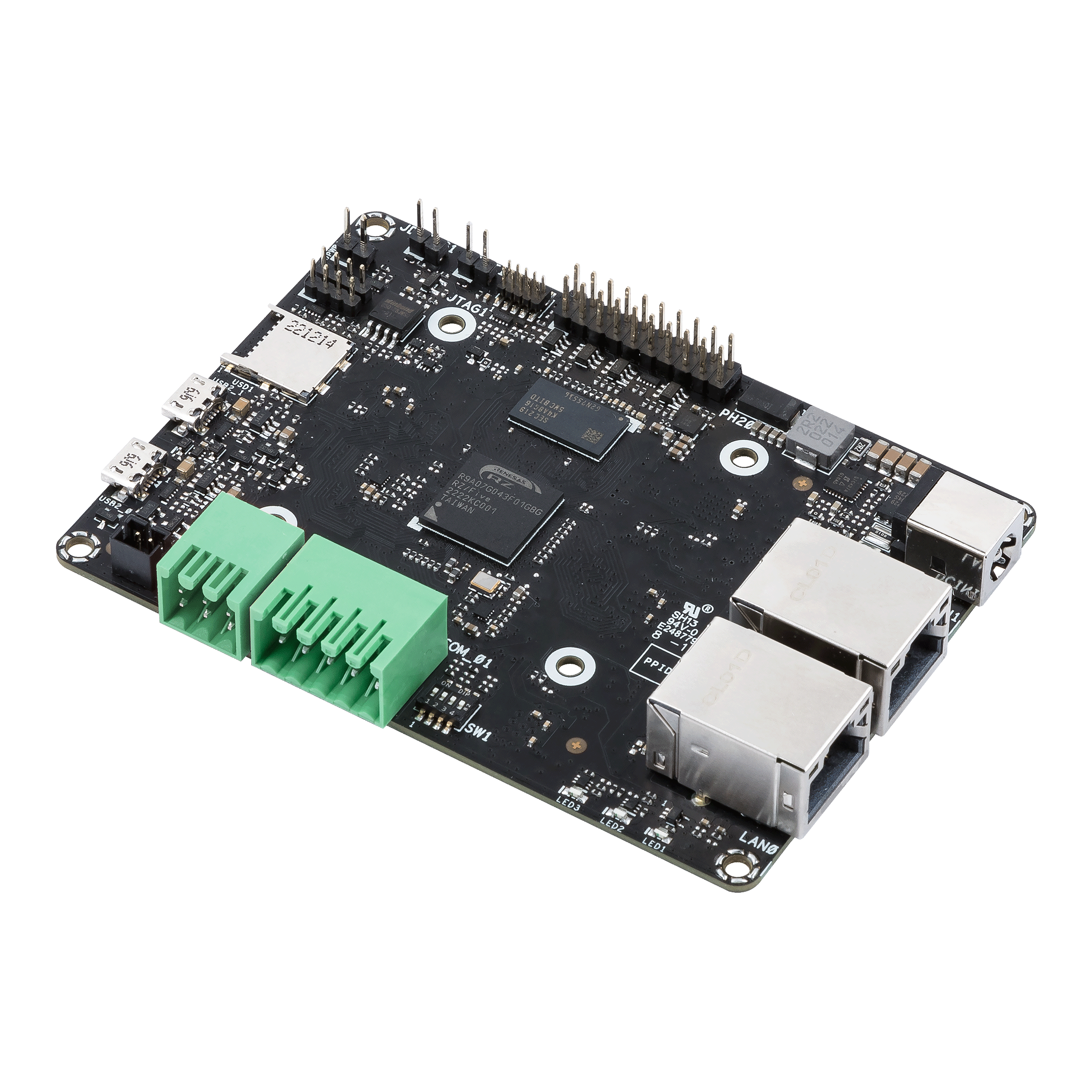

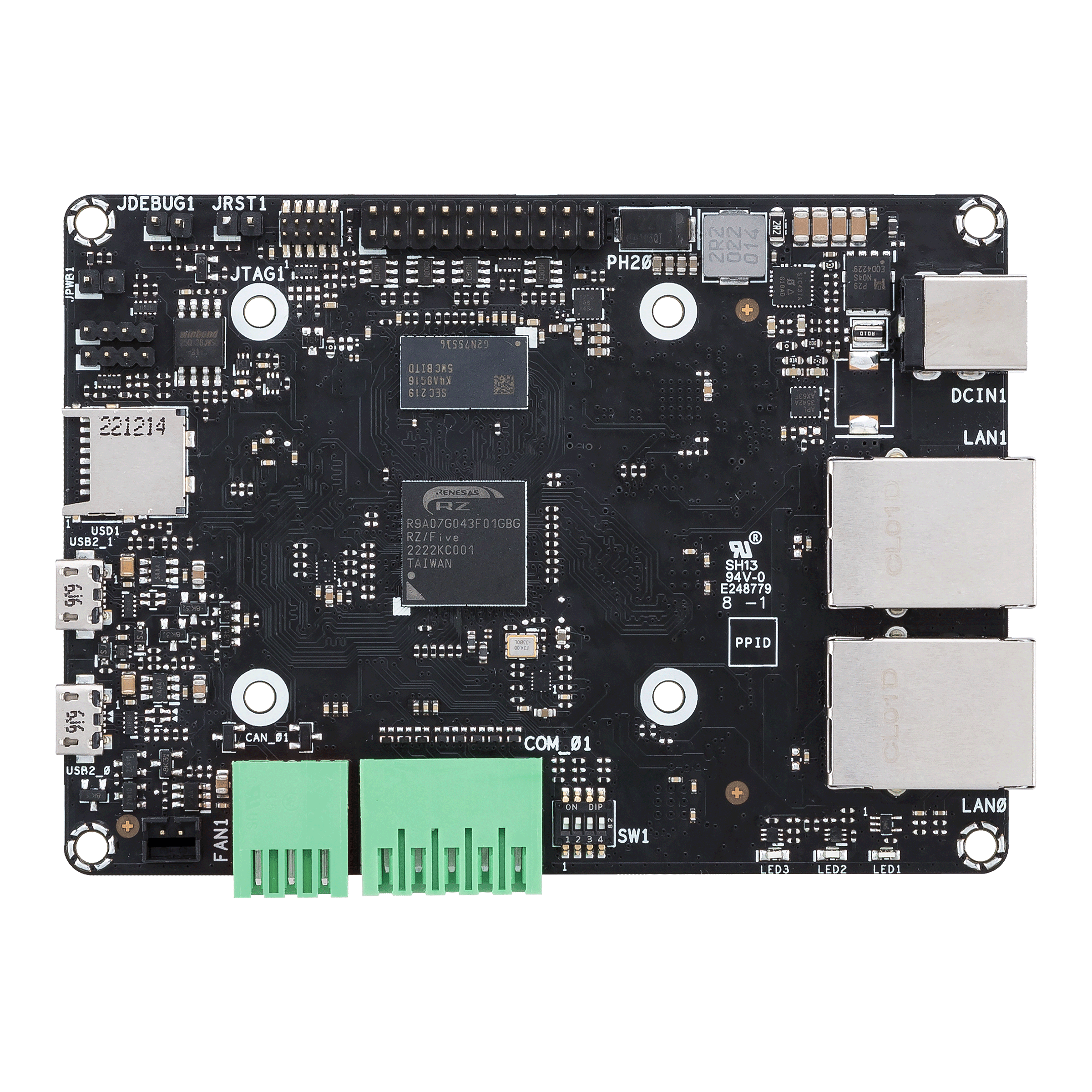

Tinker V
ASUS IoT 的首款 RISC-V 單板電腦 (SBC) 採用開放原始碼架構以擴大工業物聯網開發者社群的選項。
- 首款 ASUS IoT RISC-V SBC：64 位元處理器採用開放原始碼 RISC-V 架構，為物聯網開發人員提供更高的多樣性和彈性
- 適用於工業物聯網：支援 Linux Debian 和 Yocto、豐富的連線功能、保證使用壽命和可靠、可信賴的技術支援
- 快速成長的生態系統：ASUS IoT 與 Renesas 和 Andes 共同合作以加速 RISC-V 的採用以及工業物聯網的發展。
| CPU | Renesas RZ/Five RISC-V AndesCore™ AX45MP Single core 1.0 GHz |
|---|---|
| RAM | 1GB DDR4 |
| eMMC | 16GB(optional) |
| micro SD | 1 x Slot |
| SPI Flash | optional |
| USB | 1 x Micro USB 1 x Micro USB (OTG) |
| LAN | 2 x GbE Lan |
| CAN | 2 x CAN Bus (6 pin terminal block) |
| COM | 2 x COM RS232 (5 pin terminal block) |
| GPIO | 20 pin header up to 2 x UART up to 2 x I2C up to 4 x GPIO up to 2 x ADC 1 x SPI 1 x 3.3V 5 x GND |
| Debug | JTAG (pin header) |
| Power | 1 x DC Barrel Jack (5.5/2.5 mm) 10~24V |
| OP Temp. | -20℃ ~ 60℃ |
| Dimension | Pico-ITX, 3.9 inch x 2.8 inch (100 × 72 mm) |
